EN857 1SC – 1 wire Hydraulic hose, extremely Flexiable, Half Bend radius

Short Description:

Standard: Meet EN857 1SC
Application: Petroleum base hydraulic fluids and lubricating oils.
Inner Tube: Oil Resistant Synthetic rubber.
Reinforcement: One braid steel wire.
Out Cover: Oil & Ozone Resistant Synthetic rubber.
Temperature Range: -40°F to +212°F (-40°C to +100°C).
Product Features: Comparison with conventional hoses and other brand hoses,SC series is aimed to be more flexible,thinner,ligher and smaller bend radius

Send email to us

Product Detail

Product Tags

Part No.	Hose I.D.		Hose O.D.		Max Working Pressure		Min Burst Pressure		Minium Bending Radius		Weight of Hose
DIB-1SC	inch	mm	inch	mm	psi	Mpa	psi	Mpa	inch	mm	lbs/ft	g/m
-6	1/4	6.6	0.49	12.5	3250	22.5	13000	90.0	1.97	50	0.12	195
-8	5/16	8.1	0.54	13.7	3150	21.5	12600	86.0	2.17	55	0.13	210
-10	3/8	10.0	0.61	15.6	2600	18.0	10400	72.0	2.36	60	0.15	240
-12	1/2	13.0	0.75	19.0	2320	16.0	9280	64.0	2.76	70	0.22	340

1SC hose is suitable for hydraulic fluids on mineral oil and synthetic oil basis (HL, HLP, HLPD, HVLP), oil-water-emulsions (HFAE, HFAS, HFB), water-glycol liquids (HFC), vegetable and mineral oil based lubricants, cooling water, and compressed air. Also generally suitable for biologically degradable hydraulic liquids (HETG, HEPG, HEES) however limited by fluid additives.

Not suitable for hydraulic fluids on phosphate ester basis (HFD).

Use this hose with below hose fittings.

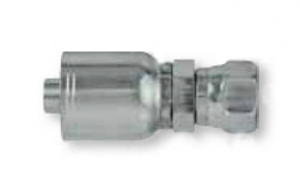

K series hose fittings
interchangeable with Kurt fittings
and Weatherhead U series
