How should you choose hydraulic fittings to ensure system compatibility?

Selecting the right hydraulic fittings keeps a system safe and leak-free. They must match system pressure, temperature, and fluid. Brass fittings, hydraulic hose fittings, and stainless steel pipe fittings each have unique uses. Mixing standards or using the wrong hydraulic fitting can cause leaks, weak connections, or even equipment damage.

• Size and thread types must match to avoid pressure loss.
• Material must suit the fluid and environment.
• Always check manufacturer and industry standards before choosing.

Key Takeaways

• Choose hydraulic fittings that match your system’s pressure, fluid type, and environment to prevent leaks and damage.
• Always verify fitting size, thread type, and material compatibility before installation to ensure a safe and efficient system.
• Stick to one trusted brand and follow proper installation and maintenance practices to keep your hydraulic system reliable and long-lasting.

Identify System Requirements for Hydraulic Fittings

Pressure Ratings and System Demands

Every hydraulic system works under a certain pressure. The right hydraulic fittings must handle this pressure without failing. In industrial and mobile equipment, systems usually run between 1,500 and 2,000 psi. Aerospace systems need even higher pressures. For example, commercial airplanes use about 3,000 psi, while military aircraft can reach 4,000 to 5,000 psi. These high pressures help move heavy parts quickly and safely.

Safety matters most. Engineers use a safety factor, often 4:1, to make sure fittings do not burst during pressure spikes. If a system runs at 2,000 psi, the fitting should handle at least 8,000 psi before breaking. The lowest-rated part in the system sets the maximum safe pressure. Larger fittings may have lower pressure ratings because they face more force inside. Choosing the right size and standard, like ORFS or JIC, helps keep the system safe and leak-free.

Fluid and Chemical Compatibility

Hydraulic fittings must match the fluid in the system. Most systems use petroleum-based fluids, but some need fire-resistant or water-based fluids. Each fluid type needs special materials for seals and hoses.

• Petroleum-based fluids work well with NBR (nitrile) and FKM (Viton®) seals.
• Phosphate ester fluids need EPDM or PTFE seals because they can damage other materials.
• Water-glycol fluids also use EPDM seals.
• Synthetic esters and bio-oils often need FKM or HNBR seals.

If someone uses the wrong material, seals can swell, shrink, or break down. This leads to leaks and system failure. Mixing fluids or using the wrong cleaning agents can also cause damage. Always check the fluid type and match it with the right seal and hose material. PTFE and some thermoplastics offer strong chemical resistance for tough jobs.

Tip: Always flush the system before changing fluids to avoid contamination and damage.

Temperature and Environmental Factors

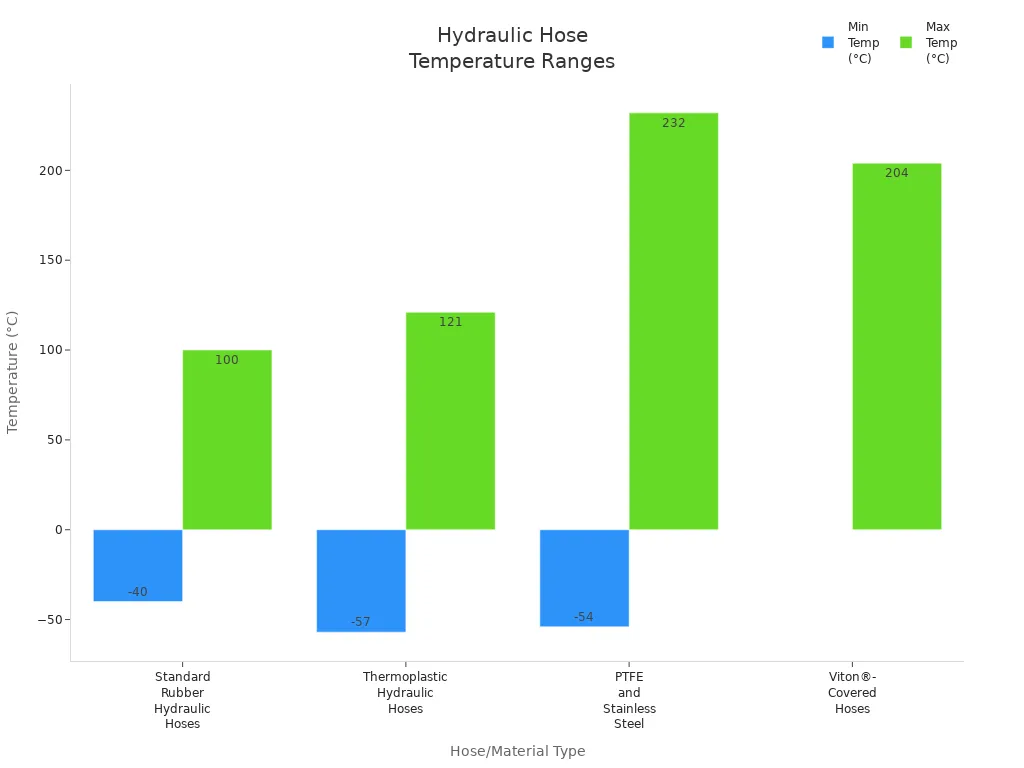

Hydraulic fittings face hot and cold conditions. Outdoor machines, like tractors or oil rigs, work in freezing winters and hot summers. Some hoses and fittings must handle temperatures from -70°F up to 450°F. PTFE hoses work well in high heat and harsh chemicals. Thermoplastic hoses stay flexible in the cold. Viton®-covered hoses handle up to 400°F for special uses.

Dust, humidity, and chemicals in the air can also harm fittings. In mining, dust wears out seals and threads. In chemical plants or near the ocean, salt and acids cause corrosion. Stainless steel, especially 316/316L, resists rust and lasts longer in these places. Standard carbon steel may not survive in harsh environments.

Vibration and Sealing Considerations

Machines shake and move. Vibration can loosen fittings, crack threads, and wear out seals. Over time, this leads to leaks or even sudden failure. Some fittings use special designs to fight vibration. ORFS (O-Ring Face Seal) fittings use a soft O-ring to keep a tight seal, even when things move or shake. Bonded seals, like Dowty washers, combine metal and rubber to stop leaks from vibration. Elastomeric encapsulated fittings protect seals from rubbing and pressure changes.

• Vibration can cause connectors to loosen, seals to fail, and cracks to form.
• Anti-vibration features, like special threads or locking compounds, help fittings stay tight.
• System design, such as using clamps or isolation mounts, reduces vibration at the source.

Note: Regular checks and proper installation help fittings last longer in high-vibration systems.

Hydraulic fittings with the right sealing technology keep systems running smoothly, even in tough conditions. ORFS fittings, for example, can handle up to 7,500 psi and resist leaks in high-pressure, high-vibration jobs.

Match Hydraulic Fittings by Type, Size, and Material

Fitting Types and Connection Methods

Choosing the right connection method helps keep a hydraulic system safe and leak-free. Each type of fitting works best in certain situations. Some fittings are easy to connect and disconnect, while others handle very high pressure. The table below shows common fitting types, where they work best, and what materials they use:

Threaded fittings work well in heavy machinery because they can handle high pressure. Quick-connect fittings make it easy to swap hoses or tools, which helps in places where workers need to change parts often. Flange fittings are strong and stop leaks in tough jobs like mining or construction. Elbow fittings help route fluid around corners, especially in tight spaces. Adapters connect parts with different thread types or sizes, making sure everything fits together. Hydraulic hose fittings keep hoses attached in mobile machines, even when the system faces a lot of pressure.

Different connection methods also affect how well a system prevents leaks:

• Inverted flare fittings use metal-to-metal contact. They resist leaks, even when the system shakes or faces high pressure. These fittings work well in brake lines and other high-stress jobs.
• O-ring fittings use a rubber ring to seal. They are easy to install and replace, but the rubber can wear out if the system vibrates a lot or gets too hot.
• Compression fittings use a ring (ferrule) squeezed by a nut. They are simple to put together and take apart, but they do not handle high pressure as well as flare fittings.

Tip: Always match the fitting type to the job. For example, use inverted flare fittings in places with lots of vibration, and quick-connects where you need to swap parts often.

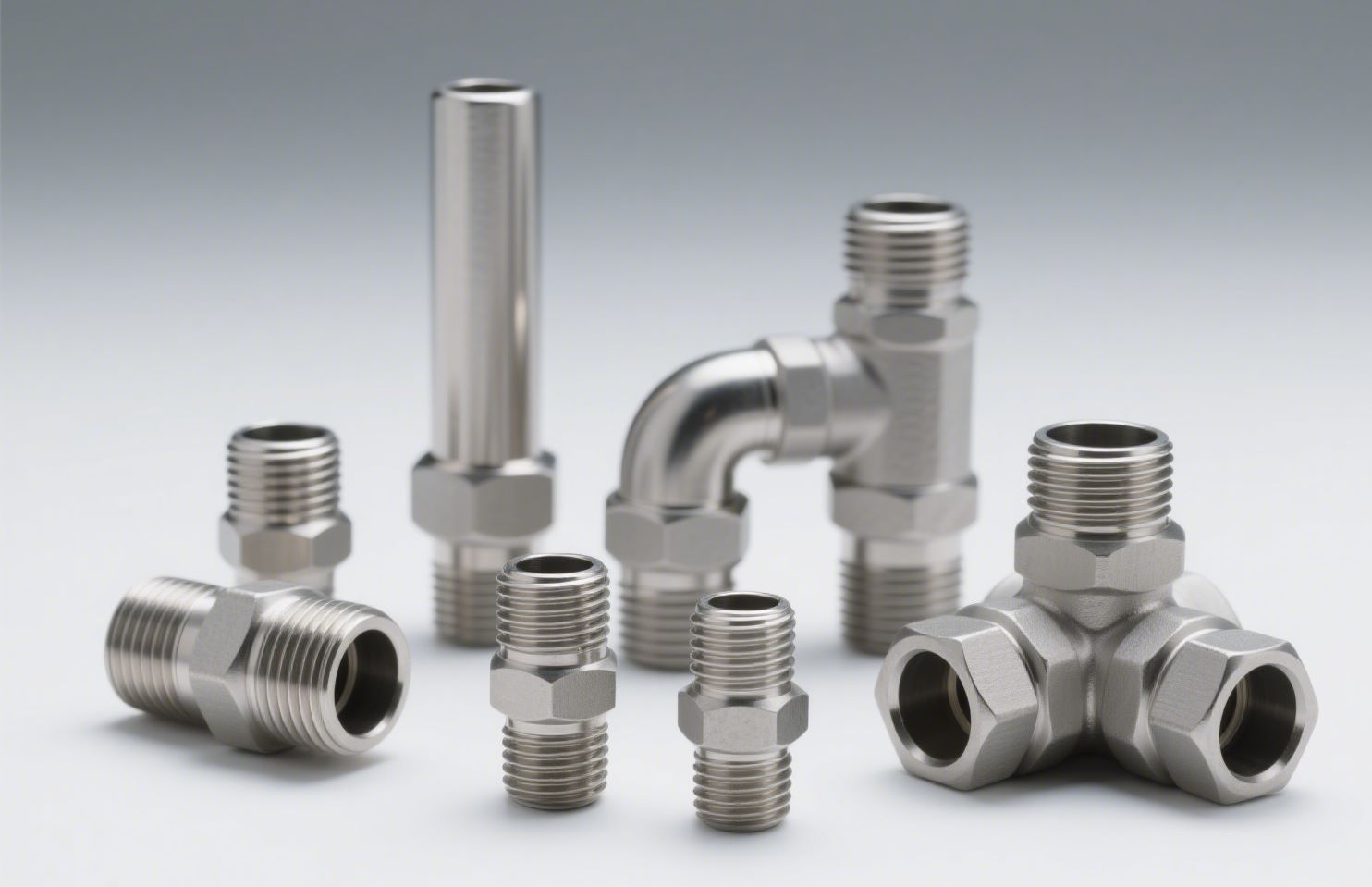

Material Selection for Application Needs

The material of a fitting matters just as much as its shape. Some materials last longer in harsh places, while others cost less or are easier to work with. The table below compares common materials for hydraulic fittings:

Stainless steel fittings work best in places with lots of moisture or chemicals, like food factories or near the ocean. They last a long time and resist rust. Carbon steel fittings are strong and cost less, but they can rust if not coated. Brass is easy to use and resists corrosion, but it is not as strong as steel. Aluminum and plastic are light and resist rust, but they only work in low-pressure jobs.

Material choice affects how long a system lasts. Using the wrong material can cause rust, leaks, or even system failure. For example, steel can rust quickly in salty air, but stainless steel will last much longer. Always pick a material that matches the fluid, pressure, and environment.

Size and Thread Identification

Getting the right size and thread type is key to keeping a hydraulic system safe. If the size or thread does not match, the fitting can leak or even break. Here is a simple way to check fitting size and thread:

1. Look at the threads. Are they straight (parallel) or do they get smaller (tapered)?
2. Use calipers to measure the outside and inside diameter of the threads.
3. Use a thread pitch gauge to check how close the threads are together.
4. Check for O-rings. These usually mean the threads are parallel.
5. For tapered threads, measure the fourth or fifth thread and subtract 1/4 inch from the inside diameter to find the size.
6. Match your measurements to a standard chart to find the right size and thread type.

If someone picks the wrong size or thread, several problems can happen:

• The fitting might burst or break under pressure.
• Leaks can start, making the system less efficient and more dangerous.
• Small fittings can cause pressure drops, which makes machines work harder and wear out faster.
• Wrong threads can damage parts and cause expensive repairs.

Note: Always double-check measurements and use charts to avoid mistakes. Even a small error can lead to big problems.

Availability and Manufacturer Compatibility

Not all fittings work together, especially if they come from different brands. Manufacturers use different thread types, sizes, and sealing methods. Mixing brands without checking can cause leaks, weak joints, or even system failure. Here are some steps to make sure fittings are compatible:

1. Learn the types of fittings you need, like connectors, adapters, elbows, or tees.
2. Check the thread type and size for each fitting.
3. Make sure the connection method (flare, compression, O-ring) matches.
4. Look at the material and finish to see if it fits your system.
5. Check the pressure rating and fluid compatibility.
6. Read the manufacturer’s documentation for exact details.
7. Ask an expert if you are not sure.

Mixing fittings from different brands can cause several risks:

Tip: Always buy hydraulic fittings from trusted suppliers and stick to one brand when possible. This helps avoid leaks, keeps the system safe, and protects your warranty.

Installation, Maintenance, and Compliance for Hydraulic Fittings

Ease of Installation and Access

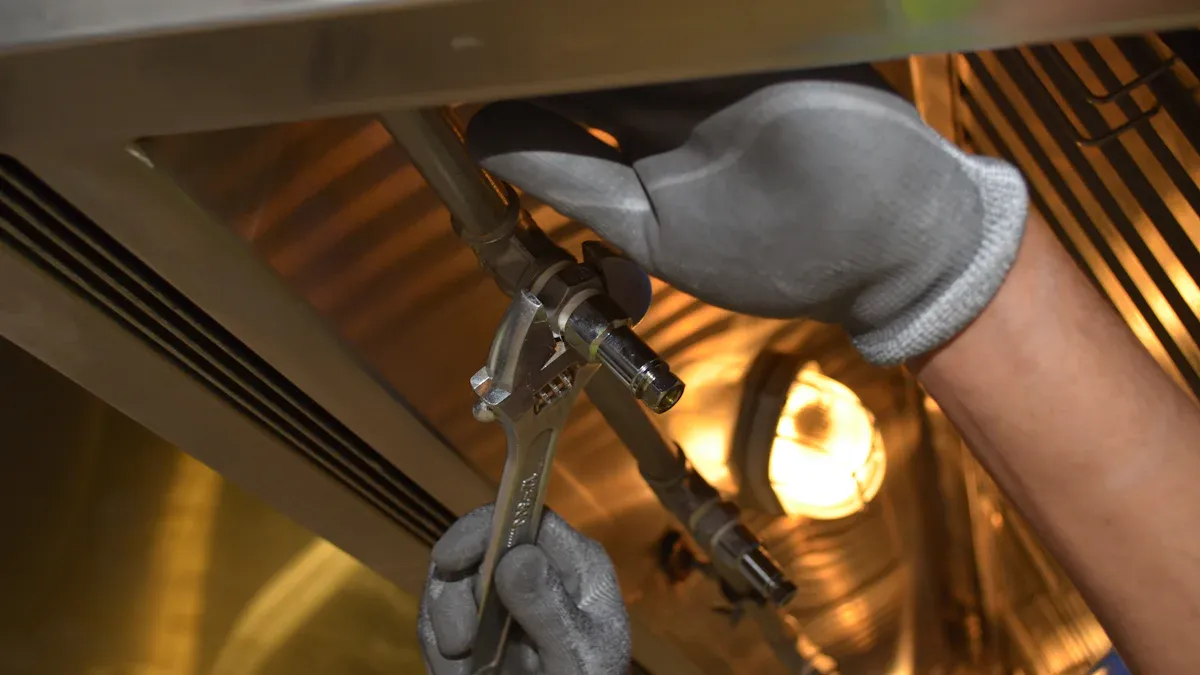

When installing hydraulic fittings, easy access makes a big difference. If a mechanic can reach the fittings without moving other parts, the job goes faster and costs less. Good system layout helps with this. Adjustable fittings and smart placement allow for quick checks and repairs. Mechanics should always clean both ends of the fitting, check for damage, and start threads by hand to avoid cross-threading. Using the right tools and following torque guidelines prevents leaks. Loctite 5452 works well on NPT and JIC fittings, but Teflon tape should only go on NPT threads and never on JIC or fittings with bonded washers.

Tip: Choose fittings that are easy to reach for future maintenance. This saves time and keeps the system running longer.

Maintenance and Replacement Planning

Regular checks keep hydraulic systems safe and reliable. High-use machines need daily or weekly inspections for leaks, cracks, or loose connections. Moderate-use systems can go a week or month between checks. Mechanics should replace any cracked or corroded fittings right away. Keeping a log of inspections and repairs helps spot problems early. Proactive maintenance, like cleaning and checking for wear, can cut downtime by up to 50% and lower repair costs.

Standards, Quality, and Supplier Verification

International standards like ISO 8434, SAE J514, and DIN 2353 set the rules for hydraulic fittings. These standards cover design, pressure, and safety. Following them helps prevent leaks and accidents. Buyers should check for certifications like ISO 9001 or CE when picking a supplier. A good supplier owns their factory, offers custom support, and delivers on time. Checking reviews, asking for referrals, and visiting trade shows can help find a trusted partner.

Troubleshooting and Safety Practices

If a leak appears, mechanics should first check the tightness and alignment of the fittings. They can use pressure gauges, thermal cameras, or ultrasonic detectors to find hidden leaks. Always depressurize the system before working on it. Wearing gloves and goggles protects against fluid sprays. Mechanics should keep records of all inspections and repairs. Following safety steps, like using the right tools and replacing damaged parts, keeps everyone safe and the system working well.

Choosing the right fittings means fewer leaks, less downtime, and safer equipment. People who check pressure, size, and material get longer-lasting systems. Experts help with tricky specs, custom designs, and quick fixes. Their advice keeps machines running smoothly and helps avoid costly mistakes.

FAQ

What happens if someone uses the wrong hydraulic fitting size?

A wrong size can cause leaks or even system failure. Always check the size chart before installing any fitting.

How can a person tell if a fitting is compatible with their hydraulic fluid?

They should check the fitting material against the fluid type. A supplier or manufacturer can help match the right materials.

Why do manufacturers recommend sticking to one brand for fittings?

Mixing brands may lead to leaks or weak connections. One brand ensures all parts fit and seal as designed.
