What are the different types of hydraulic hose fittings?

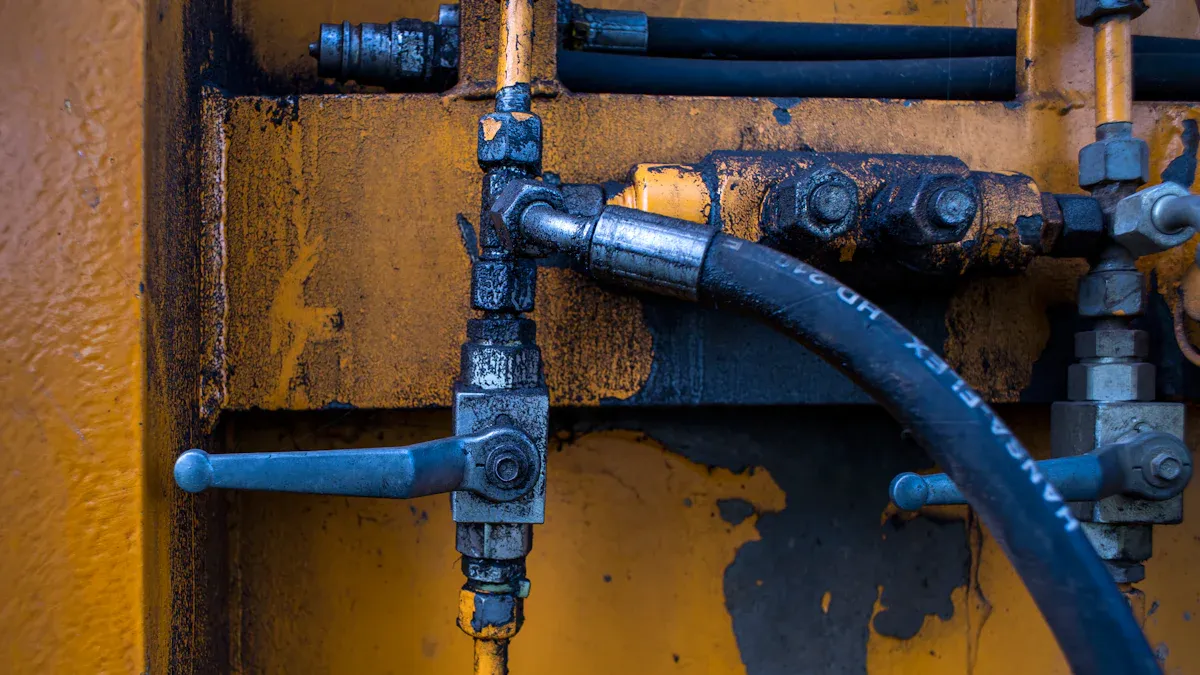

Hydraulic hose fittings connect hoses to other components in a hydraulic system, enabling fluid transfer under high pressure. These fittings play a vital role in maintaining system integrity and preventing leaks. Properly designed hose fittings improve efficiency by reducing system weight and enhancing durability. Industry advancements focus on sealing technologies and corrosion-resistant materials to ensure reliability in harsh conditions. The integration of smart sensors further boosts efficiency by enabling real-time monitoring and predictive maintenance, minimizing downtime and repair costs.

Key Takeaways

• Hydraulic hose fittings connect hoses and stop leaks in systems.
• Use O-Ring Face Seal fittings for tight, safe connections in tough jobs.
• Tapered thread fittings are simple and cheap but may need sealants.
• Quick couplers allow fast, easy connections without tools, saving time.
• Check fittings often and install them right to avoid problems.

Types of Hydraulic Hose Fittings

O-Ring Face Seal (ORFS)

O-Ring Face Seal fittings are widely recognized for their ability to create a leak-free connection in hydraulic systems. These fittings feature an O-ring embedded in the face of the fitting, which compresses against a flat surface to form a tight seal. This design minimizes fluid leakage, even under high-pressure conditions. Industries such as aerospace, automotive manufacturing, and heavy machinery rely on ORFS fittings for their superior sealing capabilities.

Tip: ORFS fittings are ideal for applications requiring enhanced safety and reliability, especially in environments prone to vibration or pressure fluctuations.

These fittings can handle pressures ranging from 250 to 630 bar, making them suitable for demanding applications. Their corrosion-resistant materials further enhance durability, ensuring long-term performance in harsh environments.

Tapered Thread Fittings

Tapered thread fittings use a threaded connection to create a seal. The threads are designed to tighten as they are screwed together, forming a secure bond. These fittings are commonly used in hydraulic systems due to their simplicity and effectiveness. However, they often require thread sealants or tape to prevent leaks.

Industries favor tapered thread fittings for their ease of assembly and compatibility with various hydraulic components. They are particularly useful in systems where frequent disassembly and reassembly are required. While they are not as robust as ORFS fittings, they remain a cost-effective solution for medium-pressure applications.

Flare Fittings

Flare fittings are designed to create a seal by compressing the flared end of a tube against the fitting body. This design ensures a tight, leak-free connection, even under high-pressure conditions. The fitting body, nut, and ferrule work together to secure the tube and maintain system integrity.

Flare fittings are commonly used in industrial fluid power systems, including hydraulic presses, pumps, and valves. Their durability and ability to withstand high pressures make them a reliable choice for demanding applications. Materials like steel and stainless steel provide strength, while brass offers corrosion resistance, making these fittings versatile across various industries.

Note: Flare fittings are particularly effective in environments where corrosion resistance and durability are critical, such as marine and offshore applications.

Key Points Summary:

• ORFS fittings provide leak-free connections and are suitable for high-pressure applications.
• Tapered thread fittings offer simplicity and cost-effectiveness but may require sealants.
• Flare fittings ensure durability and leak prevention, making them ideal for industrial systems.

Compression Fittings

Compression fittings create a secure connection by compressing a ferrule against the hose or tube. This design ensures a tight seal, preventing fluid leakage in hydraulic systems. These fittings are popular in applications requiring frequent disassembly and reassembly. Their versatility makes them suitable for both low-pressure and high-pressure systems.

Components and Functionality

Compression fittings consist of three main parts:

• Fitting Body: Provides structural support and connects to the hydraulic system.
• Nut: Tightens the fitting and secures the ferrule.
• Ferrule: Compresses against the hose or tube to form a seal.

The fitting body is often made from durable materials like brass, stainless steel, or steel. These materials resist corrosion and withstand high pressures, ensuring long-term performance.

Advantages

• Easy installation without specialized tools.
• Reusable design allows for quick maintenance.
• Compatibility with various hose and tube materials.

Challenges

Compression fittings can fail due to improper installation or prolonged exposure to corrosive environments. For example:

• A failure on a North Sea platform occurred after 12 to 17 years of service.
• Corrosion on the gripping ferrule caused the fitting to fail in a hydraulic system operating at 3,000 psi.
• The failure resulted in high-pressure hydraulic fluid injuring a technician.

Proper installation practices and regular inspections reduce the risk of such failures.

Tip: Use corrosion-resistant materials and follow manufacturer guidelines to ensure optimal performance in harsh environments.

Key Points Summary:

• Compression fittings use a ferrule to create a tight seal.
• They are easy to install and maintain, making them ideal for systems requiring frequent adjustments.
• Regular inspections and proper installation prevent failures caused by corrosion or wear.

Quick Couplers

Quick couplers simplify the connection and disconnection of hydraulic hoses. These fittings use a push-and-pull mechanism, allowing operators to quickly attach or detach hoses without tools. Their design minimizes downtime and improves efficiency in hydraulic systems.

Features and Benefits

Quick couplers offer several advantages:

• Ease of Use: Operators can connect or disconnect hoses in seconds.
• Leak Prevention: Built-in seals prevent fluid leakage during operation.
• Versatility: Compatible with various hydraulic hose fittings and systems.

Applications

Quick couplers are widely used in industries requiring frequent hose changes or equipment mobility. Common applications include:

• Construction Equipment: Excavators and loaders benefit from quick hose changes.
• Agriculture: Tractors and harvesters use quick couplers for hydraulic attachments.
• Industrial Machinery: Manufacturing systems rely on quick couplers for efficient maintenance.

Material Considerations

Quick couplers are typically made from steel, stainless steel, or brass. These materials resist wear and corrosion, ensuring durability in demanding environments.

Note: Select quick couplers with pressure ratings that match the hydraulic system to avoid performance issues.

Key Points Summary:

• Quick couplers enable fast and tool-free hose connections.
• They prevent leaks and improve system efficiency.
• Durable materials ensure reliable performance in various industries.

Categories of Hydraulic Hose Fittings

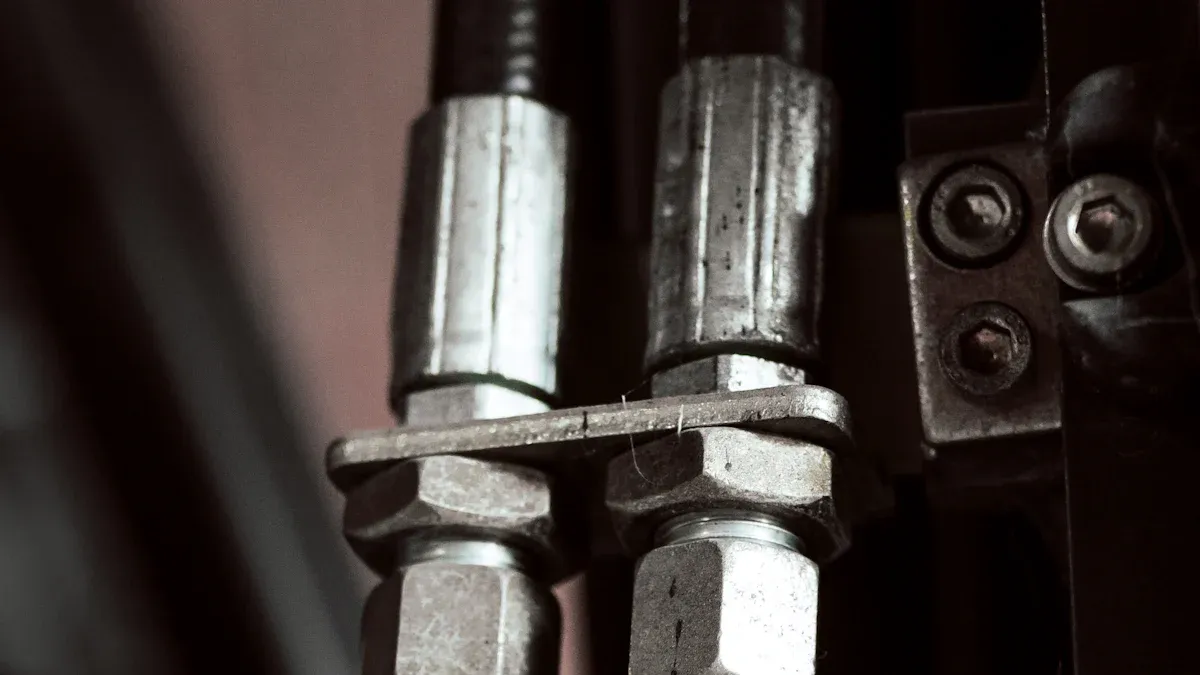

Permanent (Crimped) Fittings

Permanent fittings, also known as crimped fittings, are designed for long-term use in hydraulic systems. These fittings are attached to hoses using a crimping machine, which compresses the fitting onto the hose to create a secure and leak-free connection. Once installed, they cannot be removed or reused, making them ideal for applications where reliability and durability are critical.

Features and Benefits

• Durability: Crimped fittings withstand high pressures and extreme conditions, ensuring system integrity.
• Leak Prevention: The crimping process creates a tight seal, reducing the risk of fluid leakage.
• Wide Compatibility: These fittings work with various hose types and materials, including steel-reinforced hoses.

Applications

Permanent fittings are commonly used in industries requiring robust hydraulic systems. Examples include:

• Construction: Heavy machinery like excavators and bulldozers rely on crimped fittings for hydraulic operations.
• Manufacturing: Hydraulic presses and assembly lines benefit from the reliability of permanent fittings.
• Agriculture: Tractors and harvesters use crimped fittings for hydraulic attachments.

Tip: Regular inspections help identify wear and tear, ensuring the fittings perform optimally over time.

Key Points Summary:

• Permanent fittings are crimped onto hoses for a secure and durable connection.
• They are ideal for high-pressure applications in construction, manufacturing, and agriculture.
• Their design prevents leaks and ensures long-term reliability.

Reusable Fittings

Reusable fittings offer a flexible and cost-effective solution for hydraulic systems. Unlike crimped fittings, these can be removed and reinstalled, making them ideal for applications requiring frequent maintenance or hose replacements. They consist of two main parts: a socket and a nipple, which are manually assembled onto the hose without specialized equipment.

Features and Benefits

• Cost Savings: Reusable fittings eliminate the need for crimping machines, reducing initial setup costs.
• Ease of Maintenance: Their design allows for quick disassembly and reassembly, minimizing downtime.
• Versatility: These fittings are compatible with various hose types and sizes, making them suitable for diverse applications.

Evidence of Cost-Effectiveness

• Businesses report significant savings by switching to reusable fittings:
  • Higher initial costs are offset by reduced expenses for crimping equipment and hose replacements.
  • An agricultural contractor in Iowa saved over $15,000 annually after adopting reusable fittings.
  • A Texas construction company reduced hydraulic downtime by 30%, improving operational efficiency.

Applications

Reusable fittings are widely used in industries with high maintenance demands:

• Agriculture: Farmers benefit from the flexibility of reusable fittings for hydraulic repairs.
• Construction: Equipment operators save time and money by using reusable fittings for frequent hose replacements.
• Industrial Maintenance: Factories rely on reusable fittings to minimize downtime during hydraulic system repairs.

Note: Proper installation is crucial to prevent leaks and ensure optimal performance.

Key Points Summary:

• Reusable fittings can be removed and reinstalled, offering flexibility and cost savings.
• They are ideal for industries requiring frequent maintenance, such as agriculture and construction.
• Businesses report significant ROI and reduced downtime after adopting reusable fittings.

Material Types for Hydraulic Hose Fittings

Steel Fittings

Steel fittings are a popular choice for hydraulic hose fittings due to their strength and durability. These fittings can handle pressures up to 18,000 psi, making them suitable for demanding applications. Steel fittings perform well in industrial, construction, and agricultural equipment, where high pressure and mechanical stress are common.

Although steel fittings offer excellent strength, their moderate corrosion resistance makes them less ideal for environments with high moisture or chemical exposure. Regular maintenance and protective coatings can help extend their lifespan in such conditions.

Tip: Use steel fittings in systems where high pressure and mechanical strength are critical, but avoid using them in highly corrosive environments.

Stainless Steel Fittings

Stainless steel fittings provide superior corrosion resistance, making them ideal for aggressive environments. These fittings can withstand pressures up to 20,000 psi and temperatures ranging from -425°F to 1200°F. Industries such as oil and gas, chemical processing, and food manufacturing rely on stainless steel fittings for their durability and reliability.

Stainless steel fittings excel in resisting pitting and crevice corrosion, especially in marine or chemical environments. Their long service life and low maintenance requirements make them a cost-effective choice for harsh conditions.

Note: For systems exposed to saltwater or chemicals, stainless steel fittings offer unmatched performance and longevity.

Brass Fittings

Brass fittings are known for their excellent machinability and corrosion resistance. These fittings are commonly used in low-pressure hydraulic systems and moderate environments. Brass fittings can handle temperatures from -325°F to 400°F and pressures up to 3,000 psi, depending on their size and style.

Brass fittings are often used in applications where moderate pressure and temperature resistance are sufficient. Their ductility simplifies installation, while their corrosion resistance ensures reliability in diverse environments.

Tip: Brass fittings are a cost-effective option for low-pressure systems and environments requiring moderate corrosion resistance.

Key Points Summary:

• Steel fittings provide high strength and are ideal for high-pressure applications but require protection in corrosive environments.
• Stainless steel fittings offer excellent corrosion resistance and durability, making them suitable for harsh conditions.
• Brass fittings excel in machinability and corrosion resistance, making them a versatile choice for low-pressure systems.

Plastic Fittings

Plastic fittings are a lightweight and cost-effective option for hydraulic systems. These fittings are made from durable polymers, such as nylon, polyethylene, or polypropylene, which provide excellent resistance to corrosion and chemical exposure. Their non-metallic construction makes them ideal for applications where weight reduction and chemical compatibility are critical.

Features and Benefits

Plastic fittings offer several advantages over traditional metal fittings:

• Cost-Effectiveness: Plastic connectors are more affordable than metal alternatives, making them a popular choice for industrial and laboratory applications.
• Weight Reduction: Their lightweight design improves system efficiency and reduces the strain on connected components.
• Ease of Maintenance: Plastic quick couplings allow for rapid servicing, minimizing downtime and increasing productivity.

These features make plastic fittings particularly useful in systems requiring frequent maintenance or where weight is a limiting factor.

Applications

Plastic fittings are commonly used in low-pressure hydraulic systems and environments with aggressive chemicals. Typical applications include:

• Laboratory Equipment: Their chemical resistance ensures compatibility with various fluids.
• Food and Beverage Processing: Plastic fittings meet hygiene standards and resist corrosion from cleaning agents.
• Medical Devices: Their lightweight and non-reactive properties make them suitable for sensitive applications.

Limitations

While plastic fittings excel in specific scenarios, they are not suitable for high-pressure systems. Their lower mechanical strength compared to metal fittings limits their use in heavy-duty applications. Additionally, prolonged exposure to UV light can degrade some plastic materials, reducing their lifespan.

Tip: Use plastic fittings in systems where chemical resistance, weight reduction, and cost savings are priorities, but avoid them in high-pressure or outdoor environments.

Key Points Summary

• Plastic fittings are lightweight, cost-effective, and resistant to corrosion and chemicals.
• They are ideal for low-pressure systems in industries like food processing, laboratories, and medical devices.
• Their limitations include reduced strength and vulnerability to UV degradation.

Thread Standards for Hydraulic Hose Fittings

NPT (National Pipe Tapered)

National Pipe Tapered (NPT) threads are widely used in hydraulic systems due to their ability to create strong seals. These threads feature a tapered design that tightens as the fitting is screwed in, forming a secure connection. NPT threads are governed by ANSI and ASME standards, ensuring consistent quality and reliability in high-pressure applications.

• Key Features:
  • The tapered design enhances sealing by compressing the threads as they tighten.
  • A 60-degree thread angle improves the sealing effect, preventing leaks.
  • NPT fittings are effective in hydraulic systems operating under high pressure.

Industries such as construction and manufacturing rely on NPT fittings for their durability and leak prevention. Their standardized design ensures compatibility across various hydraulic components, simplifying system assembly and maintenance.

Tip: Regular inspections help maintain the integrity of NPT fittings, especially in systems exposed to vibration or extreme pressure.

Key Points Summary:

• NPT threads create strong seals through their tapered design.
• ANSI and ASME standards ensure reliability in high-pressure environments.
• Their widespread use makes them a trusted choice for hydraulic systems.

BSP (British Standard Pipe)

British Standard Pipe (BSP) threads are commonly used in hydraulic machinery, pneumatic systems, and water transport. BSP threads come in two types: BSPP (parallel) and BSPT (tapered). BSPP threads are particularly favored for their ability to create secure seals without excessive torque, which is crucial for maintaining system integrity under varying operational pressures.

• Advantages of BSP Threads:
  • Reliable sealing mechanisms ensure consistent performance.
  • BSP fittings are widely available and interchangeable, enhancing usability.
  • Their design supports high-pressure applications without compromising durability.

BSP threads are popular in industries requiring flexibility and reliability, such as agriculture and marine systems. Their compatibility with other thread standards makes them a versatile option for global applications.

Note: BSP fittings are ideal for systems requiring frequent adjustments or replacements due to their interchangeability.

Key Points Summary:

• BSP threads provide secure seals and reliable performance under varying pressures.
• Their widespread availability and interchangeability enhance usability.
• BSP fittings are suitable for hydraulic systems in diverse industries.

JIC (Joint Industry Council)

Joint Industry Council (JIC) fittings are designed for high-pressure hydraulic systems. These fittings feature a 37-degree flare seating surface, which creates a tight seal when the fitting is connected. JIC fittings are widely used in industries requiring robust performance, such as aerospace and heavy machinery.

JIC fittings excel in high-pressure environments, handling pressures up to 10,000 psi. Their compatibility with SAE fittings enhances their versatility, making them a preferred choice for hydraulic systems in the United States.

Tip: Use JIC fittings in systems requiring high-pressure capabilities and reliable sealing mechanisms.

Key Points Summary:

• JIC fittings feature a 37-degree flare design for tight seals.
• They handle pressures up to 10,000 psi, making them ideal for demanding applications.
• Their compatibility with SAE fittings enhances versatility in hydraulic systems.

Metric Threads

Metric threads are widely used in hydraulic systems across Europe and other regions due to their standardized design and compatibility. These threads follow international standards, ensuring reliable performance in high-pressure applications. Their design features a cylindrical profile with a consistent pitch and diameter, making them suitable for precision systems.

Features and Benefits

Metric threads offer several advantages:

• Standardization: International standards like ISO 7-1 and ISO 8434-3 ensure consistent quality and compatibility.
• Precision: The uniform pitch and diameter enhance accuracy in hydraulic connections.
• Versatility: Metric threads work seamlessly with various fittings and components.

The ISO 7-1 standard specifies dimensions and requirements for pipe threads, ensuring their reliability in high-pressure environments. Similarly, ISO 8434-3 outlines performance requirements and testing methods for O-Ring Face Seal fittings, guaranteeing their durability and leak prevention.

Applications

Metric threads are commonly found in industries requiring precision and durability. Examples include:

• Automotive Manufacturing: Hydraulic systems in vehicles rely on metric threads for secure connections.
• Aerospace: Aircraft hydraulic systems benefit from the accuracy and reliability of metric threads.
• Industrial Machinery: Metric threads ensure consistent performance in manufacturing equipment.

Tip: Regular inspections and adherence to ISO standards help maintain the integrity of metric thread fittings in demanding environments.

Key Points Summary

• Metric threads follow international standards like ISO 7-1 and ISO 8434-3.
• Their precision and versatility make them ideal for hydraulic systems in automotive, aerospace, and industrial applications.
• Regular maintenance ensures optimal performance and longevity.

How to Select the Right Hydraulic Hose Fitting

Assess Application and Pressure Requirements

Selecting the right hydraulic hose fitting begins with understanding the system’s application and pressure demands. Each hydraulic system operates under specific conditions that influence fitting selection.

• Pressure Ratings: Choose fittings with pressure ratings that match the system’s working, burst, and impulse pressures. Manufacturers often provide charts detailing pressure limits based on fitting size, material, and design.
• Temperature and Environment: Consider the temperature range and environmental conditions. High temperatures or corrosive environments require fittings made from materials that can withstand these challenges.
• Manufacturer Guidelines: Consult manufacturers for compatibility information. They test hose assemblies to ensure they meet pressure and temperature requirements.

Tip: Refer to standards like SAE or ISO for reliable pressure rating charts. These resources help ensure fittings meet system demands without compromising safety.

Key Points Summary:

• Match pressure ratings to system requirements.
• Account for temperature and environmental factors.
• Use manufacturer guidelines and standards for compatibility.

Match Material to Environmental Conditions

The material of hydraulic hose fittings significantly impacts their performance in different environments. Selecting the right material ensures durability and efficiency.

Steel fittings work well in high-pressure systems but require protective coatings in corrosive environments. Stainless steel fittings excel in resisting water and chemicals, making them ideal for marine or chemical applications. Brass fittings offer versatility in low- to medium-pressure systems, while composite materials reduce weight in applications where efficiency matters.

Note: Matching fitting materials to environmental conditions prevents premature wear and ensures optimal system performance.

Key Points Summary:

• Steel fittings suit high-pressure systems but need protection in corrosive environments.
• Stainless steel fittings resist corrosion and perform well in harsh conditions.
• Brass fittings are versatile for moderate pressure systems.
• Composite materials reduce weight and resist corrosion.

Ensure Compatibility with Hose and Thread Standards

Compatibility between hydraulic hose fittings, hoses, and thread standards ensures system reliability. Misaligned components can lead to leaks or system failure.

• Hose Compatibility: Verify that the fitting matches the hose type and size. Manufacturers often specify compatible fittings for their hoses.
• Thread Standards: Ensure the fitting aligns with the thread standard used in the system. Common standards include NPT, BSP, JIC, and Metric threads. Each standard has unique sealing mechanisms and pressure ratings.
• System Design: Consider the overall system design. Fittings must integrate seamlessly with other components to maintain efficiency and safety.

Tip: Consult experts or manufacturer guidelines to confirm compatibility before installation.

Key Points Summary:

• Match fittings to hose type and size.
• Align fittings with thread standards like NPT, BSP, JIC, or Metric.
• Ensure fittings integrate with the system design for optimal performance.

Consult Manufacturer Guidelines or Experts

Selecting the right hydraulic hose fitting often requires consulting manufacturer guidelines or seeking advice from industry experts. Manufacturers provide detailed specifications for their products, including pressure ratings, material compatibility, and thread standards. These guidelines ensure that users select fittings that meet the system’s operational requirements.

Experts, such as hydraulic engineers or technicians, offer valuable insights based on experience. They can identify potential issues, recommend suitable fittings, and ensure compliance with industry standards. Their expertise helps prevent costly mistakes, such as selecting incompatible components or underestimating pressure requirements.

Why Manufacturer Guidelines Matter

Manufacturer guidelines act as a reliable reference for product compatibility and performance. These documents often include:

• Pressure and Temperature Ratings: Ensuring the fitting can handle the system’s conditions.
• Material Specifications: Matching the fitting material to the operating environment.
• Installation Instructions: Providing step-by-step guidance for proper assembly.

Ignoring these guidelines can lead to system failures, leaks, or safety hazards.

Tip: Always review the product catalog or technical datasheets before purchasing hydraulic fittings.

Benefits of Consulting Experts

Experts bring practical knowledge to the table. They can:

• Evaluate the system’s unique requirements.
• Recommend fittings that optimize performance.
• Provide troubleshooting advice for existing systems.

Their input ensures that the hydraulic system operates efficiently and safely.

Key Points Summary

• Manufacturer guidelines provide essential information about product specifications and installation.
• Experts offer practical advice and help avoid costly errors.
• Combining both resources ensures optimal system performance and safety.

Note: Consulting both manufacturers and experts minimizes risks and maximizes the lifespan of hydraulic systems.

Hydraulic hose fittings come in various types, such as O-Ring Face Seal, Tapered Thread, and Quick Couplers, each designed for specific applications. They also fall into categories like permanent and reusable fittings, offering flexibility for different system needs. Choosing the right fitting ensures optimal performance, prevents leaks, and enhances safety in hydraulic systems. Material selection and compatibility with thread standards play a crucial role in achieving long-term reliability.

Readers should consult product catalogs or seek expert advice to make informed decisions. This approach helps tailor solutions to specific requirements, ensuring the hydraulic system operates efficiently.

FAQ

What are the most common materials used for hydraulic hose fittings?

Hydraulic hose fittings are typically made from steel, stainless steel, brass, or plastic. Each material offers unique benefits. For example, stainless steel resists corrosion, while brass provides excellent machinability. Plastic fittings are lightweight and cost-effective for low-pressure systems.

Key Point: Material selection depends on pressure, environment, and system requirements.

How do I know which thread standard to use?

Thread standards like NPT, BSP, JIC, and Metric depend on the system’s origin and application. For example, NPT is common in the U.S., while Metric threads dominate European systems. Always check the system’s specifications or consult the manufacturer.

Tip: Mismatched threads can cause leaks or system failure.

Can reusable fittings handle high-pressure applications?

Reusable fittings are generally suitable for low- to medium-pressure systems. They are not recommended for high-pressure applications due to their manual assembly process, which may not create as tight a seal as crimped fittings.

Note: Use crimped fittings for high-pressure systems to ensure safety and reliability.

How often should hydraulic hose fittings be inspected?

Inspect hydraulic hose fittings regularly, ideally during routine system maintenance. Look for signs of wear, corrosion, or leaks. Early detection of issues prevents costly repairs and ensures system safety.

Key Point: Frequent inspections extend the lifespan of hydraulic components.

What is the main advantage of quick couplers?

Quick couplers allow fast and tool-free connection or disconnection of hydraulic hoses. This feature reduces downtime and improves efficiency, especially in systems requiring frequent hose changes.

Tip: Choose quick couplers with pressure ratings that match the system for optimal performance.
