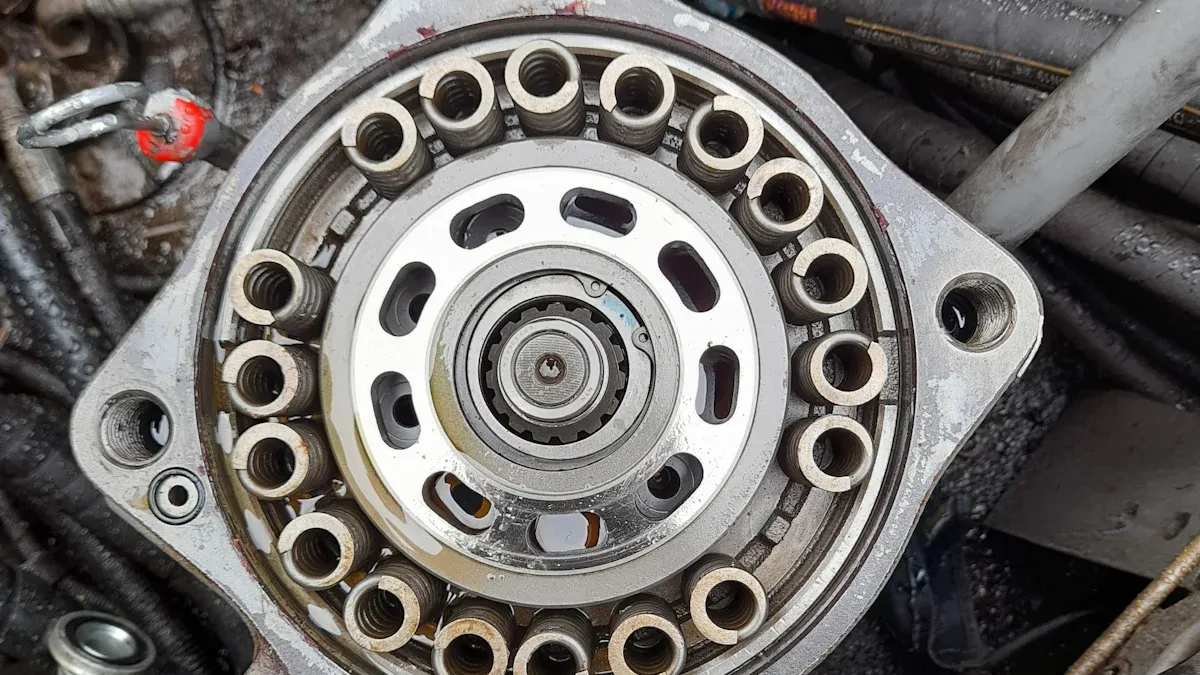

Hydraulic hose fittings are crucial components in hydraulic systems, serving to connect hoses to pumps, valves, cylinders, and other parts, ensuring seamless fluid flow. These hose fittings are essential for maintaining system efficiency by preventing leaks and interruptions. A well-chosen hydraulic hose fitting plays a vital role in ensuring safety and reliability, especially in high-pressure environments. Selecting the right hydraulic fittings can significantly enhance the performance of a system. Without secure hydraulic hose fittings, hydraulic systems would face challenges in operating effectively.
Properly installed hydraulic hose fittings improve system reliability and extend the lifespan of equipment.
Key Takeaways
- Hydraulic hose fittings join hoses to parts for smooth fluid flow.
- Picking the right fitting—threaded, crimped, or push-to-connect—depends on use and pressure needs.
- Keeping fittings in good shape and installing them correctly stops leaks.
- The material matters; stainless steel works in tough places, brass is good for low pressure.
- Follow maker instructions to make sure fittings work well together.
Types of Hydraulic Hose Fittings
Hydraulic hose fittings come in various designs, each tailored to specific applications and performance requirements. Let’s explore three common types: threaded fittings, crimped fittings, and push-to-connect fittings.

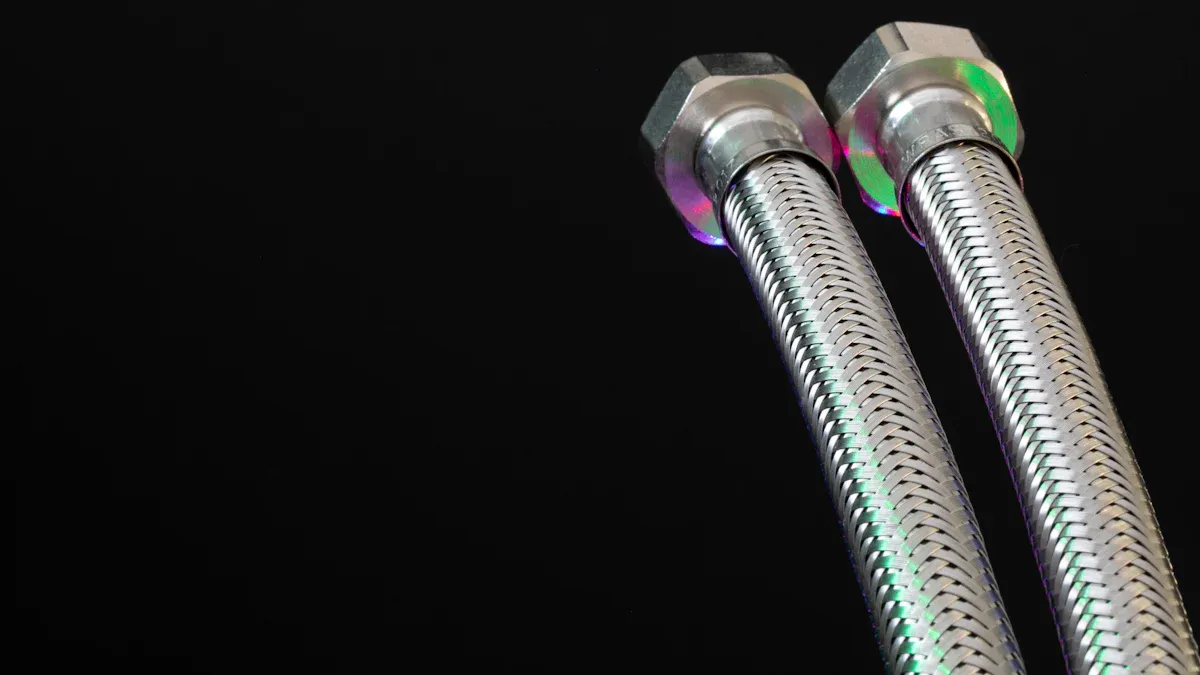

Threaded Fittings
Threaded fittings are among the most widely used types in hydraulic systems. These fittings rely on threads to create a secure connection between hoses and other components. They are available in different thread standards, such as JIC (Joint Industry Council), BSP (British Standard Pipe), and ORFS (O-Ring Face Seal). Each standard serves unique purposes:
- JIC Fittings: Known for their high-pressure capability, these fittings use a metal-to-metal seal that performs well in extreme conditions.
- BSP Fittings: Ideal for moderate-pressure systems, they offer versatility across various industries but may not handle very high pressures.
- ORFS Fittings: Designed for high-pressure applications, they provide a leak-free connection, making them a reliable choice for demanding environments.
Here’s a quick comparison of these threaded fittings:
| Fitting Type | Pressure Capability | Application Context |
|---|---|---|
| O-Ring Face Seal (ORFS) | Up to 6,000 PSI | High-pressure applications, leakage-free connection |
| JIC | High-pressure | Demanding hydraulic systems with extreme pressures |
| BSP | Moderate pressure | Versatile for low to medium-pressure applications |
Threaded fittings are a go-to option for many industries due to their durability and adaptability. However, proper installation is crucial to prevent leaks and ensure system efficiency.
Crimped Fittings
Crimped fittings are a popular choice for permanent connections in hydraulic systems. These fittings are attached to hoses using a crimping tool, which compresses the fitting onto the hose for a tight, secure seal. This method ensures a strong bond that can withstand high pressures and harsh conditions.
Crimped fittings undergo rigorous testing to meet industry standards. For example:
| Test Parameter | Acceptance Criteria | Test Method | Frequency |
|---|---|---|---|
| Crimped diameter | Within ±0.3 mm of target | Digital caliper | 100% |
| Pull-off strength | >70% of hose minimum burst pressure | Tensile tester | Sampling |
| Proof pressure | No leakage at 1.5× working pressure | Pressure tester | 100% or sampling |
| Burst pressure | >4× working pressure | Burst tester | Qualification only |
These fittings are commonly used in heavy machinery, manufacturing, and other high-pressure applications. Their reliability and strength make them indispensable in demanding environments.
Push-to-Connect Fittings
Push-to-connect fittings, also known as push-lock fittings, are designed for quick and easy installation. They don’t require tools, making them a convenient option for applications where hoses need frequent connections and disconnections. These fittings are especially popular in residential, gardening, and light industrial settings.
Some key benefits of push-to-connect fittings include:
- Ease of Use: They allow for tool-free installation, saving time and effort.
- Versatility: Ideal for applications like irrigation, landscaping, and other systems requiring flexibility.
The growing trend toward sustainable irrigation practices has increased the demand for these fittings. Their simplicity and efficiency make them a favorite for both professionals and hobbyists.
Tip: Push-to-connect fittings are perfect for low-pressure systems where convenience is a priority. However, they may not be suitable for high-pressure applications.
Flanged Fittings
Flanged fittings are a robust option for hydraulic systems, especially in high-pressure applications. These fittings use a flange—a flat, circular disk—to create a secure connection between hoses and other components. The flange is bolted to a matching surface, ensuring a tight seal that can handle extreme conditions. This design makes flanged fittings ideal for systems where vibration, pressure surges, or heavy loads are common.
One of the standout features of flanged fittings is their ability to maintain a strong seal under high pressures. For instance, they can operate at pressures up to 6,000 psi for hoses with a diameter of one inch or less. Larger sizes, such as 1.25 and 1.50 inches, can handle up to 4,000 psi. These fittings also perform well across a wide temperature range, from -30°F to 250°F with nitrile seals and up to 400°F with fluorocarbon seals. Here’s a quick overview of their specifications:
| Feature | Specification |
|---|---|
| Maximum Operating Pressure | 6,000 psi (up to 1 in.) |
| 4,000 psi (1.25 and 1.50 in.) | |
| Temperature Range | -30 to 250°F (Nitrile) |
| Up to 400°F (Fluorocarbon) | |
| Pressure Range | 1,450 to 9,100 psi |
| Sealing Mechanism | O-ring face seal |
| Compatibility | Various fluids and temperatures |
| Installation Method | Mechanical (flanging) or brazing |
| Tube Wall Thickness Range | Exceeds that of other types |
| Compliance | SAE J1453 and ISO 8434-3 |
Flanged fittings are also known for their durability. Their thicker tube walls provide added strength, making them a reliable choice for industries like construction, manufacturing, and oil and gas. While installation may require more effort compared to other fittings, the long-term benefits—such as reduced maintenance and enhanced system reliability—make them worth the investment.
Tip: When working with flanged fittings, always ensure the bolts are tightened evenly to avoid leaks or uneven pressure distribution.

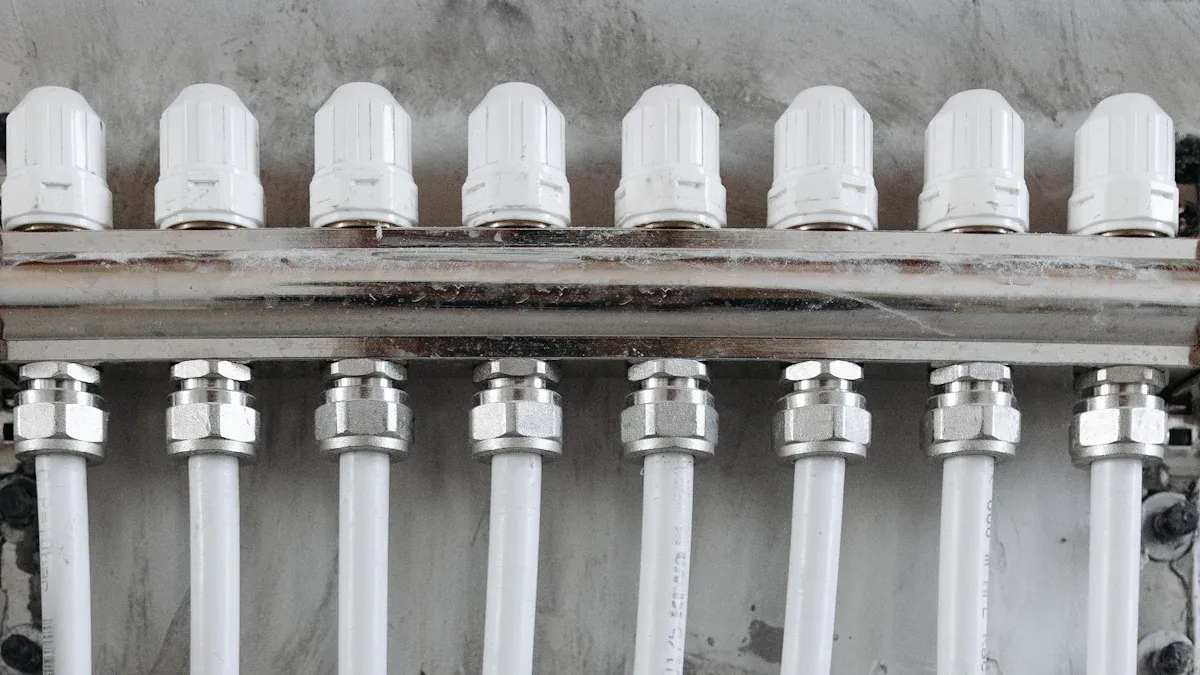

Material Variations (Steel, Brass, Stainless Steel)
The material of a hydraulic hose fitting plays a crucial role in its performance and durability. Different materials offer unique advantages, making them suitable for specific applications. Let’s take a closer look at three common options: steel, brass, and stainless steel.
- Steel: Steel fittings are the go-to choice for heavy-duty applications. They offer excellent strength and can withstand high pressures, making them ideal for construction equipment and industrial machinery. However, steel is prone to corrosion, so it’s best suited for environments where moisture exposure is minimal.
- Brass: Brass fittings are known for their corrosion resistance and ease of installation. They are often used in low- to medium-pressure systems, such as those in automotive and plumbing applications. While brass is not as strong as steel, its resistance to rust makes it a reliable option for systems exposed to water or other corrosive fluids.
- Stainless Steel: Stainless steel fittings combine the strength of steel with superior corrosion resistance. They are perfect for harsh environments, including marine, chemical, and oil and gas industries. These fittings can handle high pressures and extreme temperatures, making them one of the most versatile options available.
Each material has its strengths and limitations. Choosing the right one depends on factors like system pressure, fluid type, and environmental conditions. For example, a stainless steel fitting might be overkill for a low-pressure irrigation system but essential for a high-pressure offshore drilling rig.
Note: Always match the fitting material to the application to ensure optimal performance and longevity.
Applications of Hydraulic Hose Fittings
Hydraulic hose fittings play a vital role in various industries, ensuring the smooth operation of machinery and systems. Their ability to handle high-pressure fluid transfer makes them indispensable in several applications. Let’s explore how these fittings are used in construction, agriculture, and transportation.
Construction and Heavy Machinery
In the construction industry, hydraulic hose fittings are the backbone of heavy machinery. Equipment like excavators, cranes, and bulldozers rely on hydraulic systems to perform tasks such as lifting, digging, and moving heavy loads. These fittings ensure that hydraulic fluid flows efficiently, powering the machinery to operate at peak performance.
- Hydraulic hose fittings are crafted from high-strength materials, allowing them to endure the intense pressures found in construction environments.
- They are essential for maintaining the reliability of machinery, reducing downtime, and ensuring projects stay on schedule.
- In addition to durability, these fittings support automation in packaging and material handling, boosting productivity and cutting operational costs.
The construction sector has seen a surge in demand for hydraulic hose fittings due to global infrastructure projects. Advancements in materials science have further enhanced the performance of these fittings, making them more reliable and efficient. Without these components, modern construction machinery would struggle to meet the rigorous demands of the industry.
Did you know? Hydraulic hose fittings in construction machinery can handle pressures up to 6,000 psi, ensuring they perform even in the most challenging conditions.
Agriculture and Farming Equipment
Hydraulic hose fittings are equally important in agriculture, where they power equipment used for planting, harvesting, and irrigation. As the agricultural sector adopts more advanced machinery, the need for reliable hydraulic systems has grown significantly.
- Farmers increasingly rely on hydraulic systems for precision agriculture, which uses technology to optimize planting and harvesting.
- Modern hydraulic fittings enhance operational efficiency, reducing energy consumption by up to 30%.
- Innovations in materials science have led to lighter, more flexible hoses, improving the performance and lifespan of agricultural equipment.
The Food and Agriculture Organization (FAO) predicts that global agricultural productivity must increase by 70% by 2050 to meet the growing demand for food. This has driven the adoption of advanced hydraulic machinery, where high-quality hose fittings play a critical role. These fittings ensure that equipment operates safely and efficiently, helping farmers achieve higher yields.
Tip: Regular maintenance of hydraulic hose fittings can prevent leaks and extend the life of farming equipment, saving time and money in the long run.
Automotive and Transportation
In the automotive and transportation sectors, hydraulic hose fittings are essential for connecting hoses, tubes, and pipes within hydraulic systems. These systems are responsible for transmitting energy generated by hydraulic fluid, enabling vehicles and machinery to perform critical functions.
The demand for hydraulic fittings in this sector continues to rise due to the increasing use of advanced machinery. These fittings maintain high-pressure conditions, ensuring the safe and effective operation of equipment. Whether it’s a car’s braking system or a truck’s hydraulic lift, these components are crucial for performance and safety.
Hydraulic hose fittings also contribute to the development of more efficient and environmentally friendly vehicles. By ensuring precise fluid transfer, they help reduce energy waste and improve overall system efficiency. This makes them a key component in the push toward sustainable transportation solutions.
Fun Fact: The hydraulic systems in modern vehicles can generate pressures of up to 2,000 psi, all managed seamlessly by high-quality hose fittings.
Manufacturing and Industrial Systems
Hydraulic hose fittings are indispensable in manufacturing and industrial systems. These systems rely on hydraulic power to operate machinery, automate processes, and ensure precision in production lines. Without reliable fittings, the entire operation could face inefficiencies, downtime, or even safety hazards.
In industrial settings, the demand for hydraulic hose fittings has grown due to advancements in materials and technology. Companies now focus on creating specialized fittings tailored for niche applications. For example, fittings designed for food-grade environments must meet strict hygiene standards, while those used in chemical plants require resistance to corrosive substances. This level of customization highlights the critical role these components play in maintaining system performance.
Note: Material innovation has become a game-changer. It not only enhances the durability of fittings but also minimizes downtime, which is crucial for industries operating on tight schedules.
The competitive nature of the hydraulic hose fittings market has also driven innovation. Many companies are consolidating through mergers and acquisitions to strengthen their market position. This trend underscores the importance of staying ahead in a rapidly evolving industry. By investing in high-quality fittings, manufacturers can reduce maintenance costs and improve overall efficiency.
Oil and Gas Industry
The oil and gas industry operates under some of the harshest conditions imaginable. From deep-sea drilling to high-temperature refining processes, hydraulic systems must perform flawlessly. Hydraulic hose fittings are a cornerstone of these systems, ensuring the safe and efficient transfer of fluids under extreme pressures.
The global hydraulic hoses market, which includes fittings, is projected to grow significantly—from US$11.43 billion in 2024 to US$16.6 billion by 2031. This growth reflects the industry’s reliance on durable and flexible components. Modern fittings are designed to withstand high pressures, resist corrosion, and adapt to fluctuating temperatures, making them essential for oil rigs, pipelines, and refineries.
To ensure optimal performance, operators in the oil and gas sector follow strict protocols when handling hydraulic hose fittings. These include:
- Permanently marking connections for easy identification.
- Using dedicated toolboxes with manuals and schematics for roll changes.
- Following specific disconnection and reconnection steps to prevent leaks.
Such practices not only enhance safety but also extend the lifespan of hydraulic systems. With the increasing complexity of oil and gas operations, the demand for advanced fittings will continue to rise.
Fun Fact: Hydraulic systems in offshore drilling rigs can operate at pressures exceeding 10,000 psi, a feat made possible by high-quality hose fittings.
Importance of Hydraulic Hose Fittings
Ensuring System Efficiency
Hydraulic hose fittings play a key role in keeping systems efficient. Their smooth internal surfaces and streamlined designs reduce turbulence, allowing fluid to flow freely. This minimizes pressure drops and ensures consistent performance. Precision sealing mechanisms, like O-rings, prevent leaks and maintain system pressure, which is vital for smooth operations.
Durability is another factor that boosts efficiency. Reinforced walls and corrosion-resistant coatings extend the lifespan of fittings, reducing the need for frequent replacements. Poorly assembled fittings, on the other hand, can lead to fluid leaks and pressure loss, impairing the performance of hydraulic components. In severe cases, improper installation may even cause system failures.
Tip: Regular inspections and proper assembly of hydraulic hose fittings can prevent issues like leaks and pressure drops, ensuring optimal system efficiency.
Enhancing Safety and Reliability
Quality hydraulic hose fittings significantly enhance safety and reliability. They reduce the risk of unplanned downtime, which accounts for 37% of hydraulic system failures. By preventing fluid leaks and maintaining system integrity, these fittings minimize safety incidents and associated costs. For example, the average cost of a recordable safety incident exceeds $45,000, while remediation for minor hydraulic fluid spills can surpass $5,000.
Organizations using high-quality fittings experience up to a 35% reduction in downtime. This not only improves operational reliability but also saves money. Properly installed fittings ensure that hydraulic systems operate safely, even under high-pressure conditions.
| Evidence Description | Statistic |
|---|---|
| Hydraulic hose failures cause unplanned downtime | 37% |
| Average cost of a recordable safety incident | Exceeds $45,000 |
| Remediation costs for minor hydraulic fluid spills | Exceeds $5,000 |
| Reduction in downtime for organizations using quality fittings | Up to 35% |
Preventing Leaks and Failures
Leaks and failures can disrupt operations and pose safety risks. Hydraulic hose fittings are designed to prevent these issues. Their precise sealing mechanisms, such as O-rings, create leak-free connections that maintain system pressure. This is especially important in high-pressure environments where even minor leaks can lead to significant problems.
Incorrect installation often leads to turbulence, impairing the performance of hydraulic components. In extreme cases, it can cause complete system failure. By using durable and well-designed fittings, operators can avoid these risks. Reinforced walls and corrosion-resistant coatings further enhance reliability, ensuring the fittings withstand harsh conditions.
Note: Proper assembly and regular maintenance of hydraulic hose fittings are essential for preventing leaks and avoiding costly system failures.
Supporting High-Pressure Operations
Hydraulic systems often operate under extreme pressure, and hydraulic hose fittings are the unsung heroes that keep everything running smoothly. These fittings are designed to handle intense conditions, ensuring fluid flows without interruptions. In high-pressure environments, even a small leak can lead to big problems. That’s why choosing the right fittings is so important.
Stainless steel fittings stand out for their ability to handle high-pressure operations. They’re incredibly durable and strong, making them perfect for demanding applications. These fittings can withstand pressures up to 10,000 psi, which is no small feat. Their service life often exceeds 50 years, meaning they’ll keep hydraulic systems reliable for decades. This level of performance is critical in industries like oil and gas, where equipment faces constant stress.
High-pressure fittings also come with features that enhance their reliability. Many include reinforced walls and precision seals, which prevent leaks and maintain system integrity. These designs reduce the risk of failures, even when systems are pushed to their limits. For example, fittings with O-ring seals create tight connections that resist pressure surges. This ensures the system stays safe and efficient.
When selecting fittings for high-pressure operations, it’s essential to consider the material. Stainless steel is a top choice because it resists corrosion and handles extreme temperatures. It’s also compatible with various fluids, making it versatile across industries. Operators who invest in high-quality fittings save time and money by avoiding frequent replacements and downtime.
Tip: Regular inspections of hydraulic hose fittings can catch wear and tear early, preventing costly failures in high-pressure systems.
Hydraulic hose fittings are the backbone of high-pressure operations. Their durability and precision keep systems running smoothly, even under the toughest conditions.
How to Choose the Right Hydraulic Hose Fitting
Consider System Pressure Requirements
Selecting the right hydraulic hose fitting starts with understanding the system’s pressure demands. Hydraulic systems operate under varying pressures, and fittings must match these requirements to ensure safety and efficiency. For example, fittings like the 24° cone (ISO 8434-1) can handle pressures up to 35 MPa (5,075 psi) for smaller sizes, while O-ring face seal fittings (ISO 8434-3) can manage even higher pressures of 42 MPa (6,090 psi).
| Fitting Type | Size Range (mm) | Working Pressure (MPa/psi) |
|---|---|---|
| 24° cone (ISO 8434-1) | 4-12 | 35/5,075 |
| O-ring face seal (ISO 8434-3) | 4-16 | 42/6,090 |
| 37° flare (SAE J514) | 4-16 | 28/4,060 |
A safety margin is also critical. Hydraulic systems typically require a 4:1 safety factor, meaning the fitting’s burst pressure should be four times the working pressure. This ensures the system can handle unexpected pressure spikes without failure.
Tip: Always check the manufacturer’s pressure ratings to confirm the fitting meets your system’s needs.
Match Fitting Material to Application
The material of a hydraulic hose fitting plays a significant role in its performance. Environmental conditions, such as exposure to moisture, chemicals, or extreme temperatures, should guide the material choice. For instance, stainless steel fittings excel in corrosive environments, while brass fittings are better suited for low- to medium-pressure systems.
Here’s a quick guide to help match materials to applications:
- Steel: Ideal for heavy-duty applications but prone to rust in wet conditions.
- Brass: Corrosion-resistant and easy to install, making it great for plumbing and automotive uses.
- Stainless Steel: Combines strength and corrosion resistance, perfect for marine or chemical industries.
Choosing the wrong material can lead to premature wear or system failure. Operators should also consider the type of hydraulic fluid used, as some fluids may react with certain materials.
Note: For systems exposed to harsh chemicals, stainless steel fittings are often the safest choice.
Evaluate Hose and Fitting Compatibility
Ensuring compatibility between the hose and fitting is crucial for a reliable hydraulic system. Factors like pressure ratings, temperature conditions, and fluid characteristics must align. For example, exceeding a hose’s temperature rating can cause degradation, while mismatched pressure ratings may lead to leaks or bursts.
| Factor | Description |
|---|---|
| Pressure Ratings | Ensure the fitting matches the system’s maximum operating pressure. |
| Temperature Conditions | Verify the hose material can handle the system’s temperature range. |
| Fluid Characteristics | Consider the fluid’s viscosity and chemical properties. |
| Environmental Conditions | Account for UV exposure, extreme temperatures, or chemical contact. |
| Bend Radius and Flexibility | Ensure the hose can bend without kinking or restricting fluid flow. |
Manufacturers often provide compatibility charts to simplify the selection process. When in doubt, conducting field tests can confirm the fitting and hose work well together.
Tip: Regularly inspect hoses and fittings for wear and tear to maintain compatibility over time.
Factor in Environmental Conditions
Environmental conditions play a big role in how hydraulic hose fittings perform. Factors like temperature, humidity, and exposure to chemicals can affect the durability and efficiency of these components. Choosing the right fitting for the environment ensures the system runs smoothly and lasts longer.
For example, extreme temperatures can weaken certain materials. A steel fitting might work well in a controlled indoor setting but could fail in freezing or scorching outdoor conditions. Stainless steel fittings, on the other hand, resist corrosion and handle temperature swings better. They’re a great choice for marine or chemical environments where exposure to saltwater or harsh substances is common.
Dust and debris also impact fittings. In construction or mining, particles can clog connections or wear down seals. Using fittings with protective coatings or specialized seals can prevent these issues. Additionally, UV exposure can degrade some materials over time. For outdoor applications, fittings with UV-resistant coatings are a smart pick.
Tip: Always consider the environment where the hydraulic system will operate. This small step can save time and money on repairs later.
Matching the fitting to the environment isn’t just about durability—it’s about safety too. A fitting that fails under harsh conditions can lead to leaks, system breakdowns, or even accidents. By factoring in environmental conditions, operators can ensure their systems stay reliable and safe.
Consult Manufacturer Guidelines
Manufacturer guidelines are like a roadmap for selecting the right hydraulic hose fittings. These guidelines provide essential details about compatibility, performance, and installation. Ignoring them can lead to costly mistakes.
One widely recognized standard is ISO 18752. It helps users identify the right hose for their machinery by outlining strict testing requirements. This ensures hoses meet consistent quality benchmarks, no matter where they’re made. Following this standard guarantees that the fittings and hoses can handle the system’s demands.
Manufacturers also recommend using the STAMPED method to choose fittings. This acronym stands for:
- Size: Ensure the fitting matches the hose diameter.
- Temperature: Check if the fitting can handle the system’s temperature range.
- Application: Consider the specific use case, like construction or agriculture.
- Media: Verify compatibility with the fluid being used.
- Pressure: Confirm the fitting’s pressure rating meets system requirements.
- Ends (Couplings): Choose the right connection type for the system.
- Delivery: Account for the volume and velocity of fluid transfer.
Note: Always refer to the manufacturer’s manual for detailed specifications. It’s the best way to ensure the fitting works as intended.
By consulting these guidelines, operators can avoid mismatched components and ensure their hydraulic systems perform at their best. It’s a simple step that makes a big difference in reliability and safety.
Hydraulic hose fittings are more than connectors; they’re the backbone of efficient and safe hydraulic systems. From threaded to flanged designs, their variety ensures compatibility across industries like construction, agriculture, and oil and gas. High-quality fittings reduce interface failures, enhance reliability, and improve system performance.
| Metric Type | Description |
|---|---|
| Interface Failures | Prevents leaks or blowoffs at hose-coupling interfaces. |
| Qualification Process | Ensures compatibility through scientific testing. |
| Compatibility of Designs | Optimizes safety and performance by matching hoses and couplings. |
Choosing fittings wisely means prioritizing durability and compatibility. This small decision can make a big difference in system longevity and safety.
Tip: Always consult manufacturer guidelines to ensure the best fit for your hydraulic system.
FAQ
What are hydraulic hose fittings used for?
Hydraulic hose fittings connect hoses to pumps, valves, and other components. They ensure fluid flows smoothly and securely in hydraulic systems. Without them, systems would leak or fail under pressure.
Tip: Always check fittings for wear and tear to keep your system running efficiently.
How do I know which fitting material to choose?
Match the material to your environment. Use stainless steel for corrosive conditions, brass for water systems, and steel for heavy-duty machinery. Each material has unique strengths.
Note: Stainless steel is ideal for extreme temperatures and harsh chemicals.
Can hydraulic hose fittings handle high-pressure systems?
Yes, many fittings are designed for high-pressure environments. For example, stainless steel fittings can handle pressures up to 10,000 psi. Always check the pressure rating before choosing a fitting.
How often should hydraulic hose fittings be replaced?
Inspect fittings regularly and replace them if you notice leaks, corrosion, or wear. High-quality fittings can last years, but harsh conditions may shorten their lifespan.
Reminder: Regular maintenance prevents costly system failures.
Are hydraulic hose fittings universal?
No, fittings come in different sizes, thread types, and pressure ratings. Always check compatibility with your hose and system requirements. Manufacturer guidelines can help you choose the right one.
Fun Fact: The STAMPED method simplifies fitting selection.
Post time: Jun-09-2025
