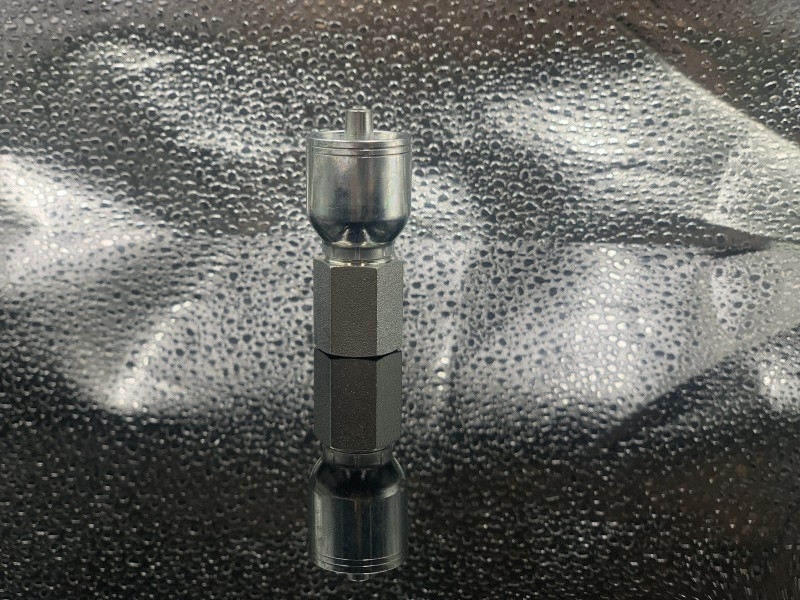

FP – Female Pipe Rigid

Thread: Female NPTF Rigid (FP)

Type: Bite to Wire Crimp Fittings

Interchangeable : Parker 43 Series,Eaton AA series

Available hydrualic hose:

1SN(100R1),2SN(100R2),100R16,100R17,100R3,100R4

1 wire & 2 wire braided hydrauic hose,2 layer textile braided hose

Material: Carbon steel, Stainless steel available

Send email to us

Product Detail

Part no.	Interchangeable with Parker Part#	Thread	HOSE Bore		A (mm)	B (mm)	H (mm)
Part no.	Interchangeable with Parker Part#	Thread	Inch	DN	A (mm)	B (mm)	H (mm)
FP-04-02	10243-2-4	1/8-27	1/4	6	44	24	15.8
FP-04-04	10243-4-4	1/4-18	1/4	6	47.5	26	17.4
FP-04-06	10243-6-4	3/8-18	1/4	6	52	30	22.2
FP-06-04	10243-4-6	1/4-18	3/8	10	54	25	17.4
FP-06-06	10243-6-6	3/8-18	3/8	10	59	30	22.2
FP-06-08	10243-8-6	1/2-14	3/8	10	60.5	31.5	25.4
FP-08-06	10243-6-8	3/8-18	1/2	12	63.5	30	22.2
FP-08-08	10243-8-8	1/2-14	1/2	12	66	32	25.4
FP-10-08	10243-10-8	1/2-14	5/8	16	70.5	32	25.4
FP-10-12	10243-12-10	3/4-14	5/8	16	69.5	31	31.8
FP-12-12	10243-12-12	3/4-14	3/4	20	70.5	32	31.8
FP-16-12	10243-12-16	3/4-14	1	25	78	33.5	31.8
FP-16-16	10243-16-16	1-11.5	1	25	84.5	40	38.1
